GNSS GM PRO

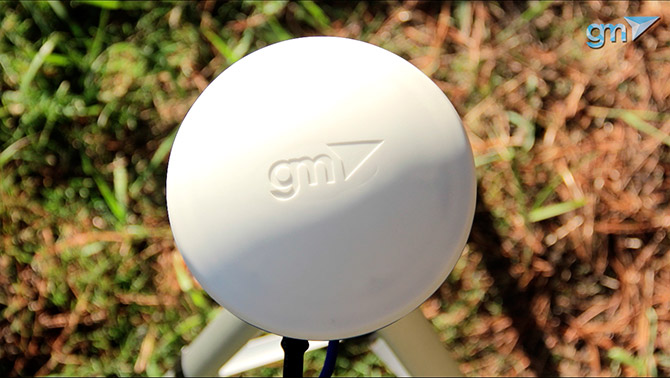

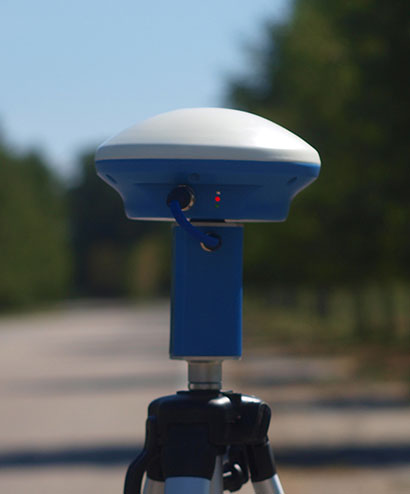

GM PRO is a single-frequency receiver and antenna in a single high-strength, sheltered housing. The unit is specially designed for use in harsh environments. Highly protected against shock and vibration. The GM PRO uses SBAS corrections from services such as WAAS and EGNOS. GM PRO features up to 14 channels of L1 GPS only, GLONASS only or combined GPS and GLONASS code and carrier phase tracking for increased positioning accuracy and availability.

GM PRO GNSS solution for agriculture, forestry, utilities, construction, mapping, geopositioning

Accessories

Battery pack for all-day battery life

Universal GNSS receiver GM PRO can be mounted with 4 neodymium magnetic mounts or screw 5/8. You can use our portable external battery with the same rugged design.

  • up to 12 hours of work
  • battery indicator
  • screw to tripod and surveying rod
  • cable to GNSS receiver
  • industrial design
  • dimensions: 50 x 100 mm
  • weight: 0.65 kg
GM PRO battery pack for all-day usage GNSS (GPS, GLONASS)

Accessories

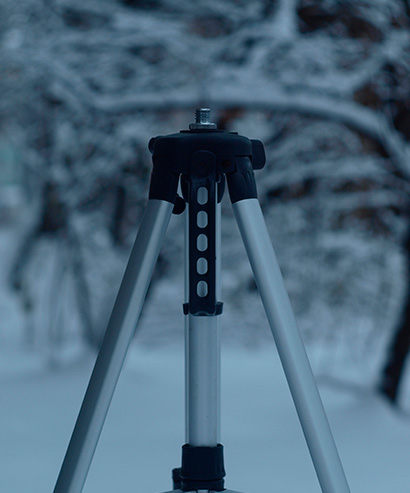

Lightweight tripod

Aluminium expanding tripod for outdoor usage with GM PRO receiver. Light and durable material causes a relatively small weight of the tripod. Stave screw with 5/8” thread.

  • aluminium body
  • screw 5/8
  • carrying cover
  • industrial design
  • dimensions: 500 x 130 mm
  • height (min): 500 mm
  • height (max): 1150 mm
  • weight: 0.67 kg
tripod accessories for GM PRO GNSS receiver (GPS, GLONASS)

Specifications

GNSS solution GM PRO could be configured for any needs in any industry.

Receiver
  • GNSS single frequency with full carrier phase tracking
  • Channels: 14
  • Signals: GPS, SBAS, GLONASS (option)
  • SBAS: WAAS, EGNOS, MSAS
Configurations
  • 14 channels L1 GPS
  • 12 channels L1 GPS + 2 SBAS
  • 14 channels L1 GLONASS
  • 12 channels L1 GLONASS + 2 SBAS
Firmware
  • NovAtel on-Board technology
  • GL1DE (option)
Power
  • Input voltage: 5V via USB
  • from 9V to 36V with external connector
  • External battery: up to 12 hours
  • Charging time: ~4 hours
Accuracy *
  • Autonomous - 1.5 m
  • SBAS - 0.7 m
  • DGNSS - 0.5 m
  • RTK (RTKLIB mode) - 0.2 m (float)
  • Fixed solution - 0.02 m
  • Timepulse - 20 ns
  • Velocity accuracy - 0.05 m/s

*GNSS accuracy subject to observation conditions, multipath environment, number of satellites in view, satellite geometry, and ionospheric activity.
Update rate
  • 1 Hz (standard)
  • 2 Hz, 5 Hz, 10 Hz (option)
Communications
  • USB 2.0
  • RS232
  • Bluetooth 2.0 (option)
Dimensions
  • Diameter - 160 mm
  • Height - 80 mm
  • Weight - 0.76 kg
Temperature
  • Operating: - 40... +65°C
  • Storage: - 50... +75°C
